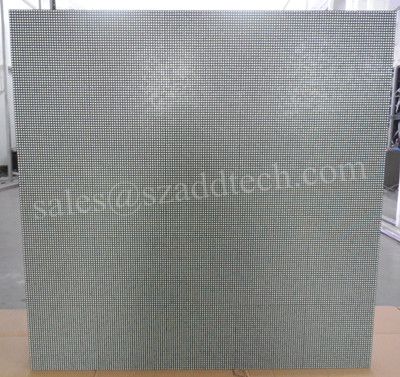

P6mm Outdoor SMD LED Display

P6mm SMD Outdoor LED Display Screen

No.	Item	Specifications
1	LED Screen Model	P6mm SMD Outdoor LED Display Screen

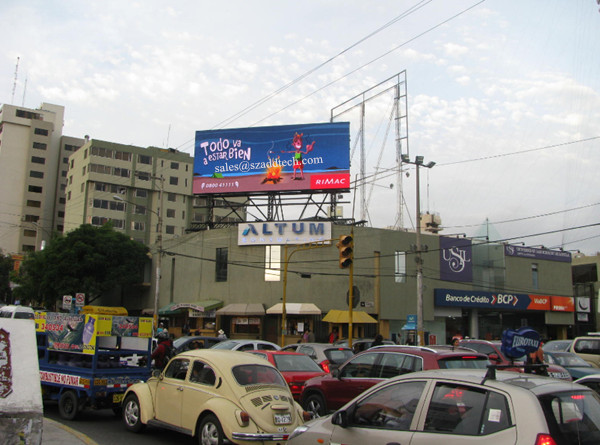

2	Application	For outdoor digital advertising
3	LED Screen Brightness	6500 nits (Maximum)

4	LED Module	192mm Height by 192mm Width
5	LED Module Pixel	32 by 32
6	LED Pixel Configuration	1R1G1B
7	LED Lamp	SMD3535 / SMD2727
8	LED Chip Brand	Sanan
9	Driving Current	Constant Current
10	Scanning Mode	1/8

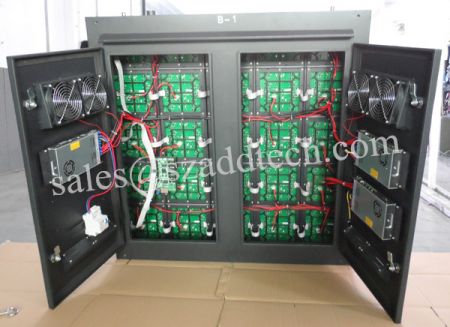

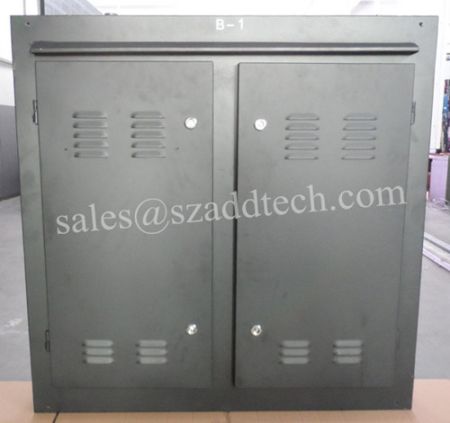

11	LED Cabinet size	960mm by 960mm
12	Power Consumption	Averagely :350-- 600 Watts /Square Meter ; Maximum : 800 Watts /Square Meter
13	Heat Treatment & Ventilation	By built-in Cooling Fans
14	Input Power	220 V AC , 50/60 Hz
15	LED Screen Design	PnP / For outdoor digital advertising / Weatherproof /
16	LED Lifetime	Up to 100,000 hours theoretically

17	Ingress Protection Level	IP65
18	Working Temperature	- 20℃ to + 60℃
19	Relative Humidity	10% to 90%
20	LED Cabinet Material	Black Powder Coated Steel

21	Control System	Synchronous Control System
22	Programming Software	LED Studio
23	Showing Contents	Scrolling Text Messages , Graphics , Videos .
24	Control Computer	Desktop or Industrial PC
25	Operating System	Windows XP / Windows 7/8 / Vista
26	Communication	By CAT5 or CAT6 network cable
27	Communication Distance	Within 100 meters

Shenzhen ADD Tech Co., Ltd
