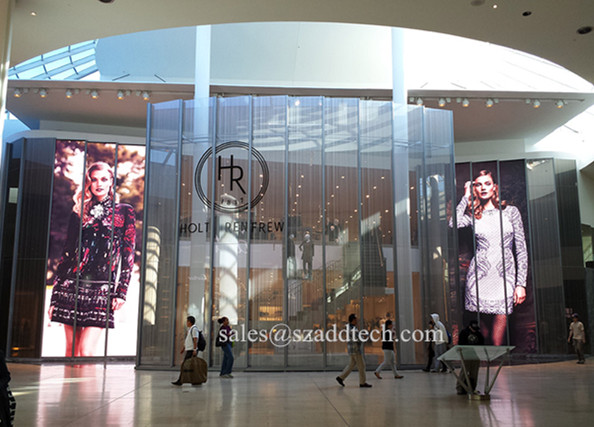

Commercial Center LED Screen

Commercial Center Screen
Technical Specifications
LED Lamp Parameters
No.	Item	Specifications
1	LED lamps	SMD 3528
2	Wavelength	Red LEDs	628-630nm
		Green LEDs	520-525nm
		Blue LEDs	465-470nm
LED Module Specifications
1	Pixel Pitch	6mm
2	Pixel Configuration	RGB (SMD 3 IN 1 )
3	Module Resolution	32dots X 16dots
4	Module Size	192mm x 96mm
LED Cabinet Specifications ( Standard Cabinet )
1	Cabinet Size(WxH)	960mm x 768mm
2	Cabinet Resolution	160x128 pixel dots
3	Module Quanity	40 PCS
4	Cabinet Frame Material	black powder coated steel
5	Cabinet Weight	33Kg
Screen Parameters
1	Screen Resolution	27,777 dots/㎡
2	Screen Brightness	5000 nits
3	Brightness Adjustment	manually
4	Driving Method	constant current 1/8
5	View Angle	Horizontal 120° Vertical 120°
6	Optimum Viewing Distance	＞5m
7	Refreshing Frequency	≥180Hz
8	Input Voltage	AC220V/50Hz or AC110V/60Hz
9	Power Consumption	Max.: 1200 W/㎡ Average: 400-800 W/㎡
10	Defects Rate	≤0.00001
11	MTBF	>5000 hours
12	Lifespan	≥100,000 hours
13	Protection Grade	IP43
14	Temperature-operating	﹣20℃～+60℃
15	Humidity-operating	10%～95%
16	Operating System	Windows98/me/2000/NT/XP
Packaging Details
1	packing material	wooden box or flight case
2	screen weight	45Kg/㎡
3	packing way	one case holds one or two cabinets

Shenzhen ADD Tech Co., Ltd
